For some more general PPP and VPN info, search the page (F3) for IPSEC, VPN, or PPP at:

http://www.6530b/CCNACrib.mht

Setting up a linux pptp server - quick summary

apt-get install pptpd

relevant files:

/etc/ppp/options - no change

Edit /etc/ppp/chap-secrets to suit. A * means from any IP address

vi /etc/ppp/chap-secrets

# Secrets for authentication using CHAP
# clientserversecret IP addresses
uname pptpd password *

The pptpd name above relates to the auth setting in /etc/ppp/pptpd -options
# Authentication

# Name of the local system for authentication purposes
# (must match the second field in /etc/ppp/chap-secrets entries)
name pptpd

The rest of this file defaults are fine.

Change the # (Recommended) section settings to match the local server IP and VPN client pool to suit in:
vi /etc/pptpd.conf
eg:
# (Recommended)
localip 192.168.0.8
remoteip 192.168.0.200-220

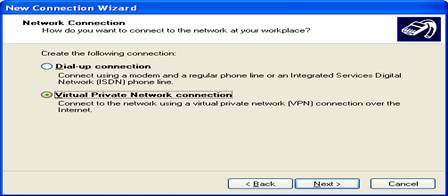

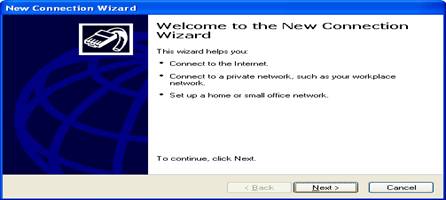

Test the config by creating a VPN in Windows to this server inside the LAN first to check the Linux server is working:

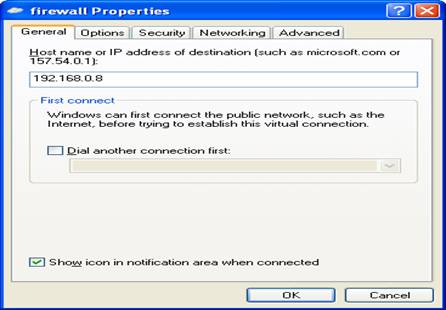

Continue to wizard end then edit VPN server IP accordingly:

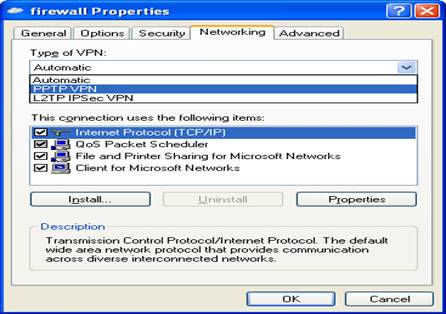

Auto or pptp will do as windows negotiates VPN parameters well generally (bloody hell! They got something else right!):

You can monitor the connection on the server in real time with:

tail -f /var/log/syslog

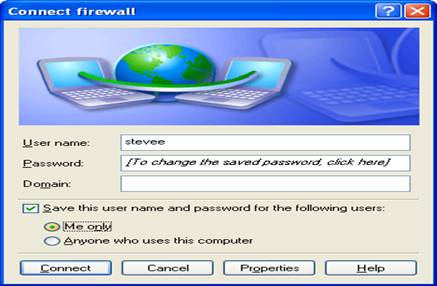

Start the connection in windows after adding the password you set in chap-secrets:

tail -f /var/log/syslog

Mar 22 10:18:55 firewall pptpd[3999]: CTRL: Client 192.168.0.2 control connection finished

Mar 22 11:17:01 firewall /USR/SBIN/CRON[14748]: (root) CMD (cd / && run-parts --report /etc/cron.hourly)

Mar 22 12:17:01 firewall /USR/SBIN/CRON[25742]: (root) CMD (cd / && run-parts --report /etc/cron.hourly)

Mar 22 13:17:01 firewall /USR/SBIN/CRON[4258]: (root) CMD (cd / && run-parts --report /etc/cron.hourly)

Mar 22 13:49:43 firewall pptpd[10191]: CTRL: Client 192.168.0.2 control connection started

Mar 22 13:49:43 firewall pptpd[10191]: CTRL: Starting call (launching pppd, opening GRE)

Mar 22 13:49:43 firewall pppd[10193]: Plugin /usr/lib/pptpd/pptpd-logwtmp.so loaded.

Mar 22 13:49:43 firewall pppd[10193]: pppd 2.4.4 started by root, uid 0

Mar 22 13:49:43 firewall pppd[10193]: Using interface ppp0

Mar 22 13:49:43 firewall pppd[10193]: Connect: ppp0 <--> /dev/pts/0

Mar 22 13:49:43 firewall pptpd[10191]: GRE: Bad checksum from pppd.

Mar 22 13:49:43 firewall pptpd[10191]: CTRL: Ignored a SET LINK INFO packet with real ACCMs!

Mar 22 13:49:43 firewall pppd[10193]: MPPE 128-bit stateless compression enabled

Mar 22 13:49:45 firewall pppd[10193]: found interface eth0 for proxy arp

Mar 22 13:49:45 firewall pppd[10193]: localIP address 192.168.0.8

Mar 22 13:49:45 firewall pppd[10193]: remote IP address 192.168.0.200

Note the ppp address allocated from the pool set in /etc/pptpd.conf
# (Recommended)
localip 192.168.0.8
remoteip 192.168.0.200-220
:

ifconfig

eth0 Link encap:EthernetHWaddr 00:20:ed:35:ff:f4

inet addr:192.168.0.8 Bcast:192.168.0.255 Mask:255.255.255.0

inet6 addr: fe80::220:edff:fe35:fff4/64 Scope:Link

UP BROADCAST RUNNING MULTICASTMTU:1500Metric:1

RX packets:78651 errors:0 dropped:0 overruns:0 frame:0

TX packets:108876 errors:0 dropped:0 overruns:15 carrier:0

collisions:0 txqueuelen:1000

RX bytes:6933271 (6.6 MiB)TX bytes:33750055 (32.1 MiB)

Interrupt:18 Base address:0xcc00

lo Link encap:Local Loopback

inet addr:127.0.0.1Mask:255.0.0.0

inet6 addr: ::1/128 Scope:Host

UP LOOPBACK RUNNINGMTU:16436Metric:1

RX packets:3826 errors:0 dropped:0 overruns:0 frame:0

TX packets:3826 errors:0 dropped:0 overruns:0 carrier:0

collisions:0 txqueuelen:0

RX bytes:819258 (800.0 KiB)TX bytes:819258 (800.0 KiB)

ppp0 Link encap:Point-to-Point Protocol

inet addr:192.168.0.8P-t-P:192.168.0.200 Mask:255.255.255.255

UP POINTOPOINT RUNNING NOARP MULTICASTMTU:1396Metric:1

RX packets:110 errors:0 dropped:0 overruns:0 frame:0

TX packets:179 errors:0 dropped:0 overruns:0 carrier:0

collisions:0 txqueuelen:3

RX bytes:9266 (9.0 KiB)TX bytes:39314 (38.3 KiB)

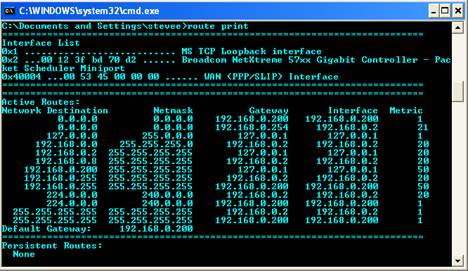

Note the default route for the win client now changes also to itself and the GW:

It is added to the server also:

route

Kernel IP routing table

Destination Gateway Genmask Flags Metric Ref Use Iface

192.168.0.200 * 255.255.255.255 UH 0 0 0 ppp0

192.168.0.0 * 255.255.255.0 U 0 0 0 eth0

default 192.168.0.254 0.0.0.0 UG 0 0 0 eth0

VPN and Firewalling with SDM

I manually added:

ip nat inside source static udp 192.168.0.8 1723 interface Dialer0 1723

ip nat inside source static udp 192.168.0.8 500 interface Dialer0 500

ip nat inside source static tcp 192.168.0.8 500 interface Dialer0 500

ip nat inside source static tcp 192.168.0.8 1723 interface Dialer0 1723

but for a working VPN conf with Firewall the missing line on firewall addition preventing connection was

access-list 101 permit gre any any. The 5900 lines are an attempt to allow VNC also. The "ip nat source static..." rule is the same format for the VNC port 5901 as for the VPN on 1723, and allowing a "permit ip any any eq 5901" rule in access-list 101 also.

--------------------------------------------------

no service pad

service timestamps debug datetime msec

service timestamps log datetime msec

service password-encryption

!

hostname c837

!

boot-start-marker

boot-end-marker

!

logging buffered alerts

logging console critical

enable secret 5 $1$bKbq$6g8zQS6ycazIL5pqZ0sht1

!

aaa new-model

!

aaa authentication login default local

aaa authentication login sdm_vpn_xauth_ml_1 local

aaa authorization exec default local

aaa authorization network sdm_vpn_group_ml_1 local

!

aaa session-id common

!

resource policy

!

clock timezone gmt 0

clock save interval 8

no ip dhcp use vrf connected

!

!

ip tcp synwait-time 10

ip cef

ip name-server 8.8.8.8

!

ip tcp synwait-time 10

ip cef

ip name-server 8.8.8.8

ip name-server 192.168.0.15

ip port-map user-pptp port tcp 5900 list 5

ip port-map user-VNC port tcp 5900 list 3

ip port-map user-VNC port tcp 5900 list 4

ip port-map user-GRE port tcp 500 list 6

ip inspect name SDM_LOW cuseeme

ip inspect name SDM_LOW dns

ip inspect name SDM_LOW ftp

ip inspect name SDM_LOW h323

ip inspect name SDM_LOW https

ip inspect name SDM_LOW icmp

ip inspect name SDM_LOW imap

ip inspect name SDM_LOW netshow

ip inspect name SDM_LOW rcmd

ip inspect name SDM_LOW realaudio

ip inspect name SDM_LOW rtsp

ip inspect name SDM_LOW esmtp

ip inspect name SDM_LOW sqlnet

ip inspect name SDM_LOW streamworks

ip inspect name SDM_LOW tftp

ip inspect name SDM_LOW tcp

ip inspect name SDM_LOW udp

ip inspect name SDM_LOW vdolive

ip inspect name SDM_LOW realaudio

ip inspect name SDM_LOW rtsp

ip inspect name SDM_LOW esmtp

ip inspect name SDM_LOW sqlnet

ip inspect name SDM_LOW streamworks

ip inspect name SDM_LOW tftp

ip inspect name SDM_LOW tcp

ip inspect name SDM_LOW udp

ip inspect name SDM_LOW vdolive

ip inspect name SDM_LOW pop3

!

!

crypto pki trustpoint TP-self-signed-4146657400

enrollment selfsigned

subject-name cn=IOS-Self-Signed-Certificate-4146657400

revocation-check none

rsakeypair TP-self-signed-4146657400

!

!

crypto pki certificate chain TP-self-signed-4146657400

certificate self-signed 01

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

username me privilege 15 password 7 secretxxx

!

!

!

crypto isakmp policy 1

encr 3des

authentication pre-share

group 2

crypto isakmp key xxxx address 192.168.0.8 255.255.255.0

!

crypto isakmp client configuration group me

key xxxxxxxx

pool SDM_POOL_1

max-users 5

authentication pre-share

group 2

crypto isakmp key xxxxx address 192.168.0.8 255.255.255.0

!

crypto isakmp client configuration group me

key xxxxxxx

pool SDM_POOL_1

max-users 5

!

!

crypto ipsec transform-set ESP-3DES-SHA esp-3des esp-sha-hmac

!

crypto dynamic-map SDM_DYNMAP_1 1

set transform-set ESP-3DES-SHA

reverse-route

!

!

crypto map SDM_CMAP_1 client authentication list sdm_vpn_xauth_ml_1

crypto map SDM_CMAP_1 isakmp authorization list sdm_vpn_group_ml_1

crypto map SDM_CMAP_1 client configuration address respond

crypto map SDM_CMAP_1 65535 ipsec-isakmp dynamic SDM_DYNMAP_1

!

!

!

interface Ethernet0

description $ETH-LAN$$FW_INSIDE$

ip address 192.168.0.254 255.255.255.0

ip access-group 100 in

ip flow ingress

ip nat inside

ip virtual-reassembly

ip route-cache flow

!

interface Ethernet0

description $ETH-LAN$$FW_INSIDE$

ip address 192.168.0.254 255.255.255.0

ip access-group 100 in

ip flow ingress

ip nat inside

ip virtual-reassembly

ip route-cache flow

hold-queue 100 out

!

interface Ethernet2

no ip address

shutdown

hold-queue 100 out

!

interface ATM0

no ip address

no atm ilmi-keepalive

dsl operating-mode auto

dsl enable-training-log

dsl lom 200

!

interface ATM0.1 point-to-point

no snmp trap link-status

pvc 0/38

encapsulation aal5mux ppp dialer

dialer pool-member 1

!

!

interface FastEthernet1

duplex auto

interface ATM0.1 point-to-point

no snmp trap link-status

pvc 0/38

encapsulation aal5mux ppp dialer

dialer pool-member 1

!

!

interface FastEthernet1

duplex auto

speed auto

!

interface FastEthernet2

duplex auto

speed auto

!

interface FastEthernet3

duplex auto

speed auto

!

interface FastEthernet4

duplex auto

speed auto

!

interface Dialer0

description $FW_OUTSIDE$

ip address negotiated

ip access-group 101 in

no ip redirects

ip flow ingress

ip nat outside

ip inspect SDM_LOW in

ip inspect SDM_LOW out

ip virtual-reassembly

encapsulation ppp

ip route-cache flow

dialer pool 1

dialer-group 1

ppp authentication chap callin

ppp chap hostname me@plusdsl.net

ppp chap password 7 0518120A37494B0F151C07155F

crypto map SDM_CMAP_1

!

ip local pool SDM_POOL_1 192.168.0.150 192.168.0.160

ip route 0.0.0.0 0.0.0.0 Dialer0

ip http server

ip http secure-server

ip dns server

ip nat pool LAN 192.168.0.1 192.168.0.99 netmask 255.255.255.0

ip nat source static esp 192.168.0.8 interface Dialer0

ip nat inside source static udp 192.168.0.8 1723 interface Dialer0 1723

ip nat inside source static udp 192.168.0.8 500 interface Dialer0 500

ip nat inside source static tcp 192.168.0.8 500 interface Dialer0 500

ip nat inside source static tcp 192.168.0.8 1723 interface Dialer0 1723

ip nat inside source route-map SDM_RMAP_1 interface Dialer0 overload

!

access-list 1 remark INSIDE_IF=Ethernet0

access-list 1 remark SDM_ACL Category=2

access-list 1 permit 192.168.0.0 0.0.0.255

access-list 2 remark SDM_ACL Category=2

access-list 2 permit 192.168.0.0 0.0.0.255

access-list 3 remark SDM_ACL Category=1

access-list 3 permit 192.168.0.15

access-list 4 remark SDM_ACL Category=1

access-list 4 permit 192.168.0.8

access-list 5 remark SDM_ACL Category=1

access-list 5 permit 192.168.0.8

access-list 6 remark SDM_ACL Category=1

access-list 6 permit 102.168.0.8

access-list 100 remark auto generated by SDM firewall configuration

access-list 100 remark SDM_ACL Category=1

access-list 100 deny ip host 255.255.255.255 any

access-list 100 deny ip 127.0.0.0 0.255.255.255 any

access-list 100 permit ip any any

access-list 101 remark auto generated by SDM firewall configuration

access-list 101 remark SDM_ACL Category=1

access-list 101 permit tcp any any eq 1723

access-list 101 permit tcp any any eq 500

access-list 101 permit gre any any

access-list 101 permit udp any any eq 1723

access-list 101 remark Auto generated by SDM for NTP (123) 207.46.197.32

access-list 101 permit udp host 207.46.197.32 eq ntp any eq ntp

access-list 101 remark Auto generated by SDM for NTP (123) 131.188.3.223

access-list 101 permit udp host 131.188.3.223 eq ntp any eq ntp

access-list 101 permit ahp any any

access-list 101 permit esp any any

access-list 101 permit udp any any eq isakmp

access-list 101 permit udp any any eq non500-isakmp

access-list 101 deny ip 192.168.0.0 0.0.0.255 any

access-list 101 permit icmp any any echo-reply

access-list 101 permit icmp any any time-exceeded

access-list 101 permit icmp any any unreachable

access-list 101 deny ip 10.0.0.0 0.255.255.255 any

access-list 101 deny ip 172.16.0.0 0.15.255.255 any

access-list 101 denyip 192.168.0.0 0.0.255.255 any

access-list 101 denyip 127.0.0.0 0.255.255.255 any

access-list 101 denyip host 255.255.255.255 any

access-list 101 denyip host 0.0.0.0 any

access-list 101 denyip any any log

access-list 102 remark SDM_ACL Category=2

access-list 102 denyip any host 192.168.0.150

access-list 101 denyip 10.0.0.0 0.255.255.255 any

access-list 101 denyip 172.16.0.0 0.15.255.255 any

access-list 101 denyip 192.168.0.0 0.0.255.255 any

access-list 101 denyip 127.0.0.0 0.255.255.255 any

access-list 101 denyip host 255.255.255.255 any

access-list 101 denyip host 0.0.0.0 any

access-list 101 denyip any any log

access-list 102 remark SDM_ACL Category=2

access-list 102 denyip any host 192.168.0.150

access-list 102 denyip any host 192.168.0.151

access-list 102 denyip any host 192.168.0.152

access-list 102 denyip any host 192.168.0.153

access-list 102 denyip any host 192.168.0.154

access-list 102 denyip any host 192.168.0.155

access-list 102 denyip any host 192.168.0.156

access-list 102 denyip any host 192.168.0.157

access-list 102 denyip any host 192.168.0.158

access-list 102 denyip any host 192.168.0.159

access-list 102 denyip any host 192.168.0.160

access-list 102 permit ip 192.168.0.0 0.0.0.255 any

dialer-list 1 protocol ip permit

route-map SDM_RMAP_1 permit 1

match ip address 102

!

!

control-plane

!

banner motd ^C

Authorized access only

This system is the property of steve edwards. Disconnect IMMEDIATELY as you are not an authorized user! ^C

!

line con 0

no modem enable

line aux 0

line vty 0 4

password 7 051B030A31

transport input ssh

!

scheduler max-task-time 5000

scheduler interval 500

sntp server 131.188.3.223

sntp server 207.46.197.32

end

The connection details after the stateful firewall is added via SDM:

Mar 23 07:30:01 firewall anacron[20519]: Anacron 2.3 started on 2011-03-23
Mar 23 07:30:01 firewall anacron[20519]: Normal exit (0 jobs run)
Mar 23 07:30:19 firewall pptpd[20575]: CTRL: Client 81.137.x.x control connection started
Mar 23 07:30:19 firewall pptpd[20575]: CTRL: Starting call (launching pppd, opening GRE)
Mar 23 07:30:19 firewall pppd[20576]: Plugin /usr/lib/pptpd/pptpd-logwtmp.so loaded.
Mar 23 07:30:19 firewall kernel: [ 6244.469466] PPP generic driver version 2.4.2
Mar 23 07:30:19 firewall pppd[20576]: pppd 2.4.4 started by root, uid 0
Mar 23 07:30:19 firewall pppd[20576]: Using interface ppp0
Mar 23 07:30:19 firewall pppd[20576]: Connect: ppp0 <--> /dev/pts/2
Mar 23 07:30:19 firewall pptpd[20575]: GRE: Bad checksum from pppd.
Mar 23 07:30:21 firewall pptpd[20575]: CTRL: Ignored a SET LINK INFO packet with real ACCMs!
Mar 23 07:30:21 firewall kernel: [ 6246.917831] padlock: VIA PadLock Hash Engine not detected.
Mar 23 07:30:21 firewall modprobe: WARNING: Error inserting padlock_sha (/lib/modules/2.6.26-2-686/kernel/drivers/crypto/padlock-sha.ko): No such device
Mar 23 07:30:21 firewall kernel: [ 6246.923949] PPP MPPE Compression module registered
Mar 23 07:30:21 firewall pppd[20576]: MPPE 128-bit stateless compression enabled
Mar 23 07:30:24 firewall pppd[20576]: found interface eth0 for proxy arp
Mar 23 07:30:24 firewall pppd[20576]: local IP address 192.168.0.8
Mar 23 07:30:24 firewall pppd[20576]: remote IP address 192.168.0.200
